SE M-A2
| Nguồn gốc / Xuất xứ | Bảo hành | Đơn vị |
| Đức / Trung Quốc | 12 tháng | Bộ |
Trạng thái: Còn hàng
Giá: 15,980,000 VND
SE M-A2
2.1 ACTIVE INSTALLATION COLUMN SYSTEM
M-A2 is a compact and modular active all-in-one column system. This installation system offers full range frequency response and stereophonic sound. It is composed of one 2× 6.5” sub, two columns and one four-channel amplifier.
M-A2 generates a clear, dynamic and balanced sound throughout the frequency range of this system. The array configuration ensures greater coverage with very well-balanced sound distribution even in the farthest corners of the venue.
THÔNG SỐ KỸ THUẬT:

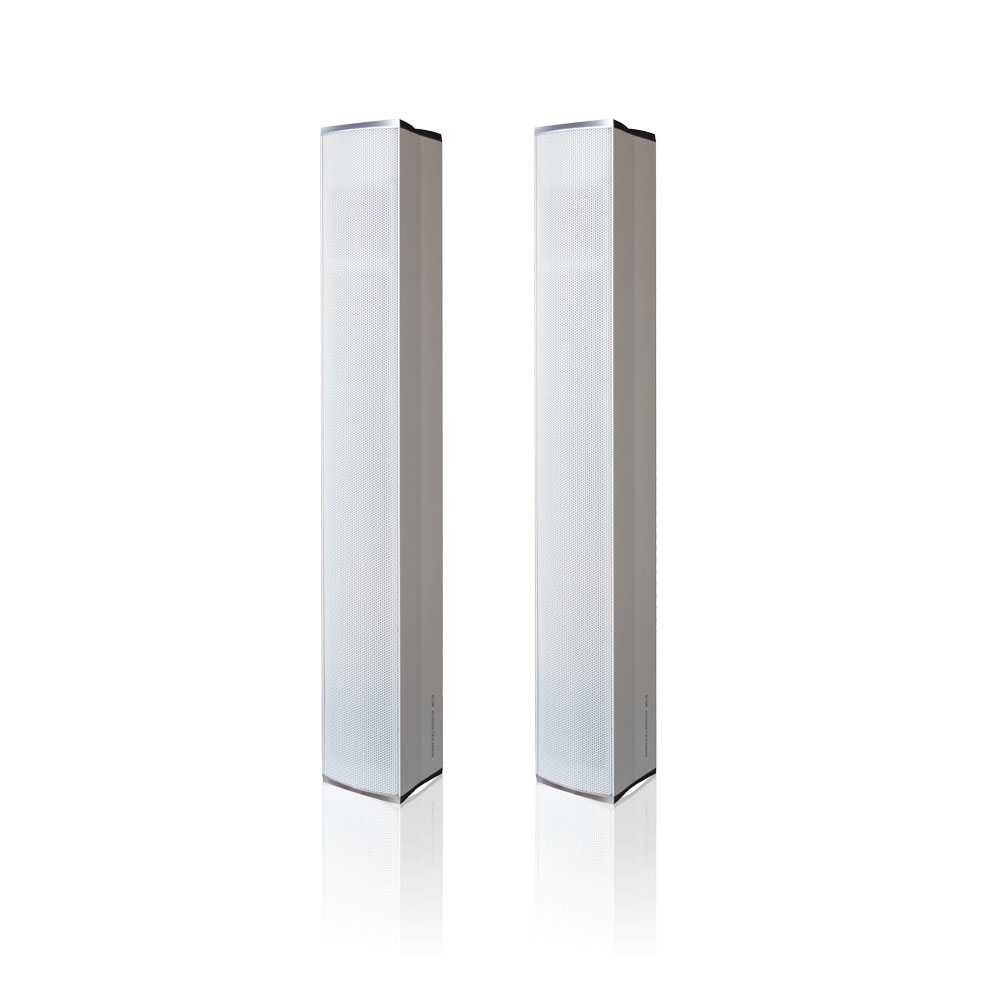

| M-A2 Column | |
| Type : | 2.8" Sealed |
| Frequency range (-6dB) : | 180 Hz - 20 kHz |
| Sensitivity (1W / 1m): | 100 dB |
| Max.SPL (1m) : | 121 dB |
| Horizontal dispersion (-6dB) : | 120° |
| Transducer MF: | 8× 2.8", ferrite magnet, 0.75" voice coil |
| Transducer HF: | 1× 1", neodymium magnet, phenolic diaphragm, 1" voice coil |
| Input: | 1 × Neutrik NL- 4, input: MF: pins +1 / -1, HF: pins +2 / -2 |
| Cabinet / Coating: | 6063 aluminum, HD coating |
| Dimensions (W × H × D): | 110 × 820 × 132 mm |
| Weight: | 6 kg + 6 kg |
| M-A2 COLUMN can only be used with M-A2 AMP. | |

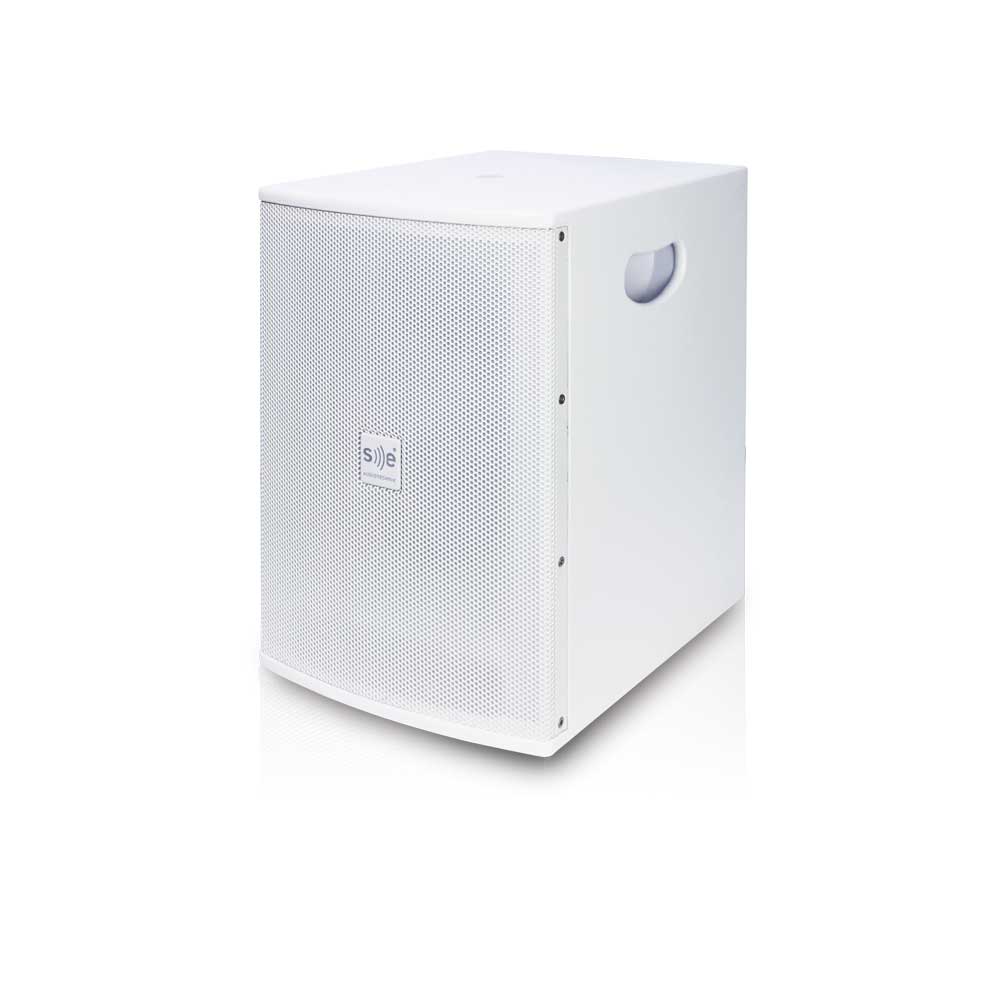

| M-A2 SUB | |
| Type: | 6.5" V construction, bassreflex |
| Frequency response (-6dB): | 50 Hz - 200 Hz |
| Power handling (RMS): | 200 W |
| Sensitivity (1W / 1m): | 97 dB |
| Max. SPL (1m): | 120 dB |
| Transducer LF: | 2× 6.5", ferrite magnet, 1.5" voice coil |
| Input: | 1 × Neutrik NL- 4, input: MF: pins +1 / +2 |
| Cabinet / Coating: | 15 mm plywood, white PU texture coating |
| Dimensions (W × H × D): | 300 × 412 × 346 mm |
| Weight: | 11.5 kg |

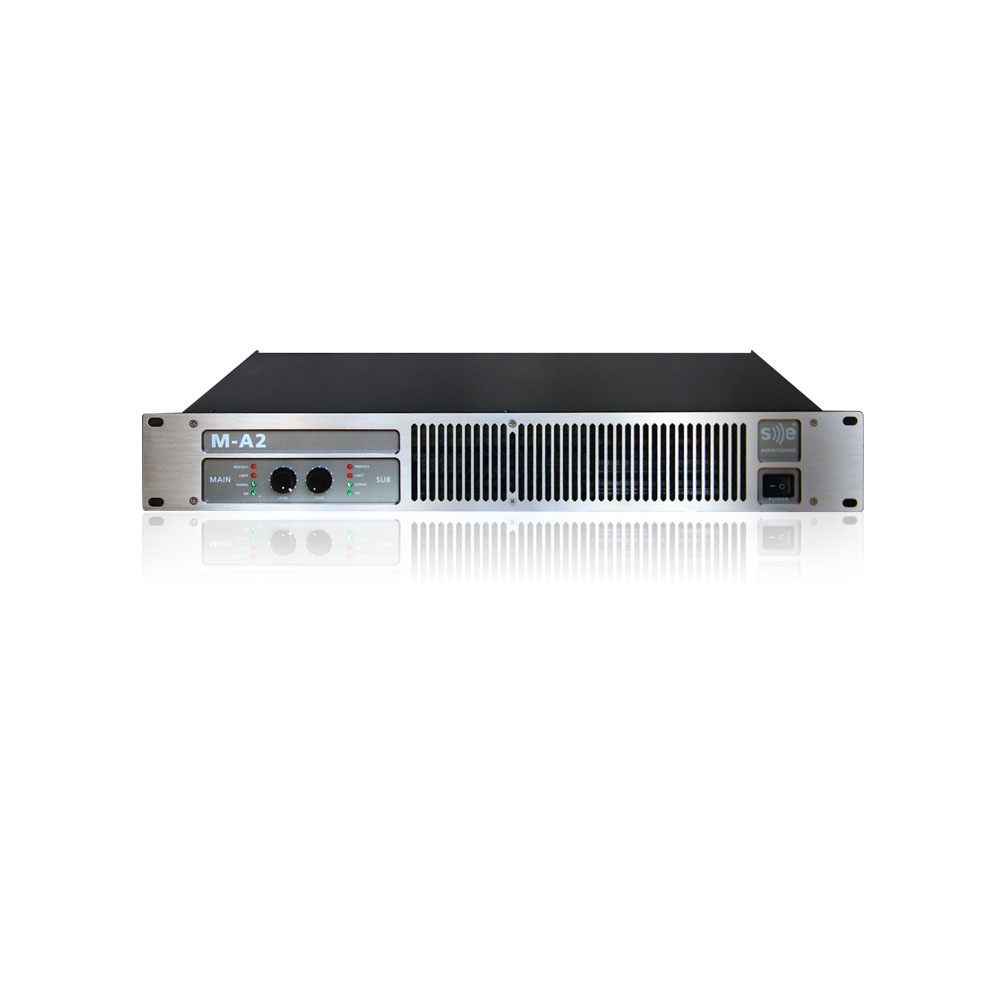

| M-A2 AMP | |
| Ampilifer type: | Class D amplifier, SMPS |
| Power output (RMS): | Sub: 400 W (200 W × 2) , Column: 400 W [ (100 W + 100 W) × 2 ] |
| Input sensitivity: | - 12 dBV |
| Signal processing: | DSP, 48 kHz, 24 bits |
| Protection: | Multiple limiter, short circuit, overheating |
| Controls: | On / Off switch, Main level, sub level |
| Indicators: | On, signal, limit, protect |
| Input / Output: | Input Neutrik XLR / Link-output Neutrik XLR, speaker out Neutrik NL- 4 |
| Dimensions (W × H × D) : | 483 × 66 × 347 mm |
| Weight: | 6.5 kg |
| M-A2 AMP can only be used for M-A2 COLUMN and M-A2 SUB. |
